RIP/RIF Wall Bushing

QXFCRG(P)W(L) | 24kV - 550kV | 630A - 8000A

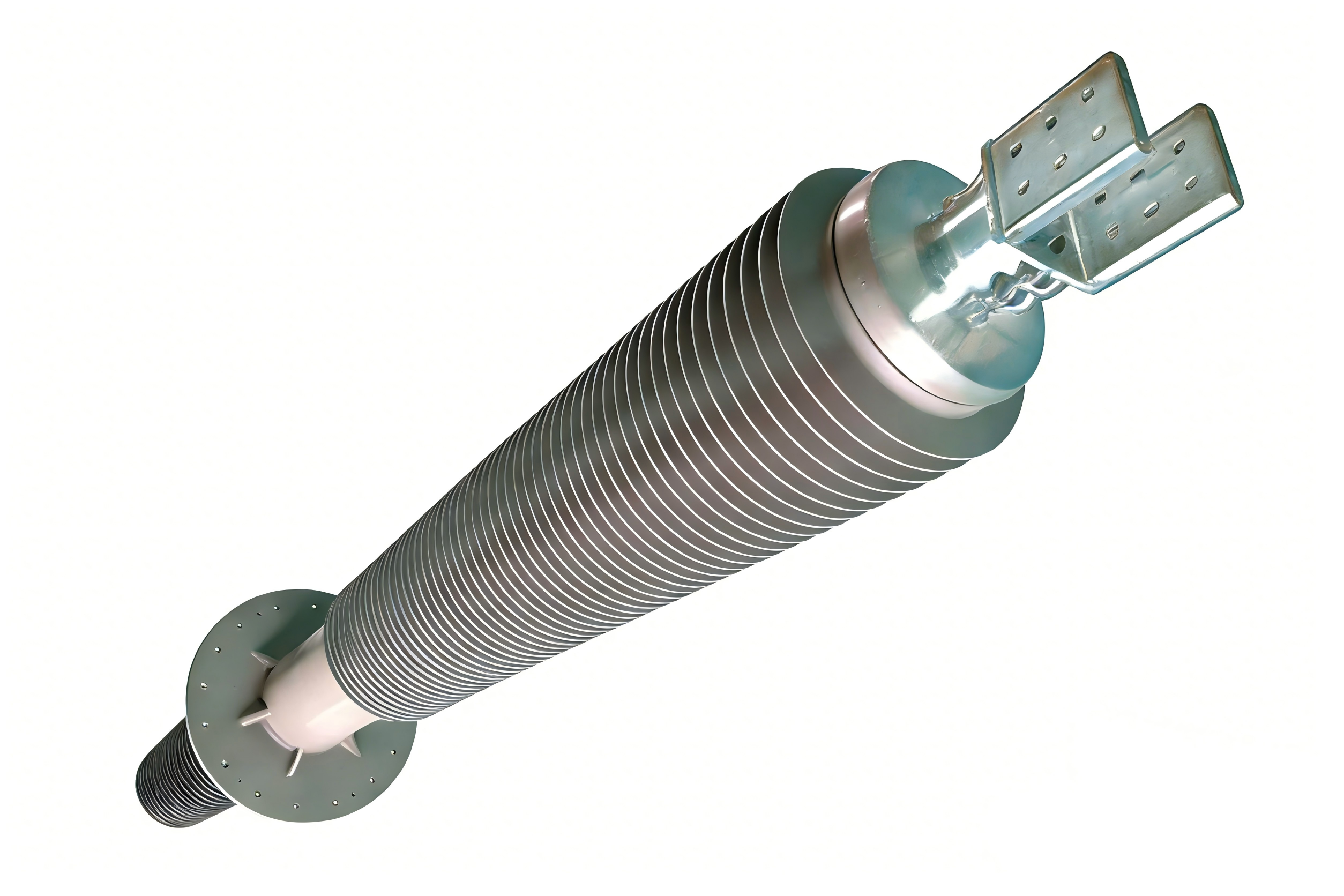

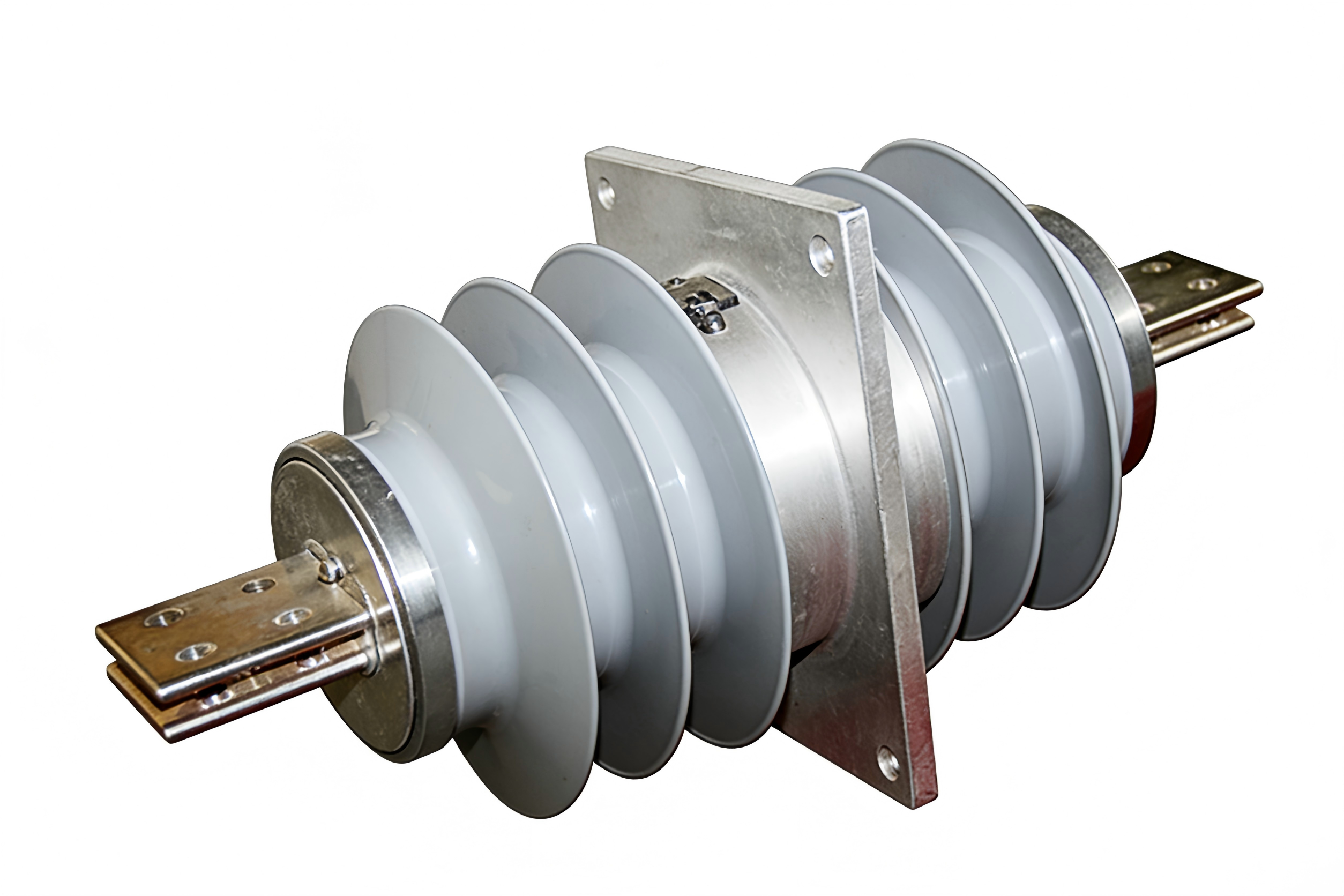

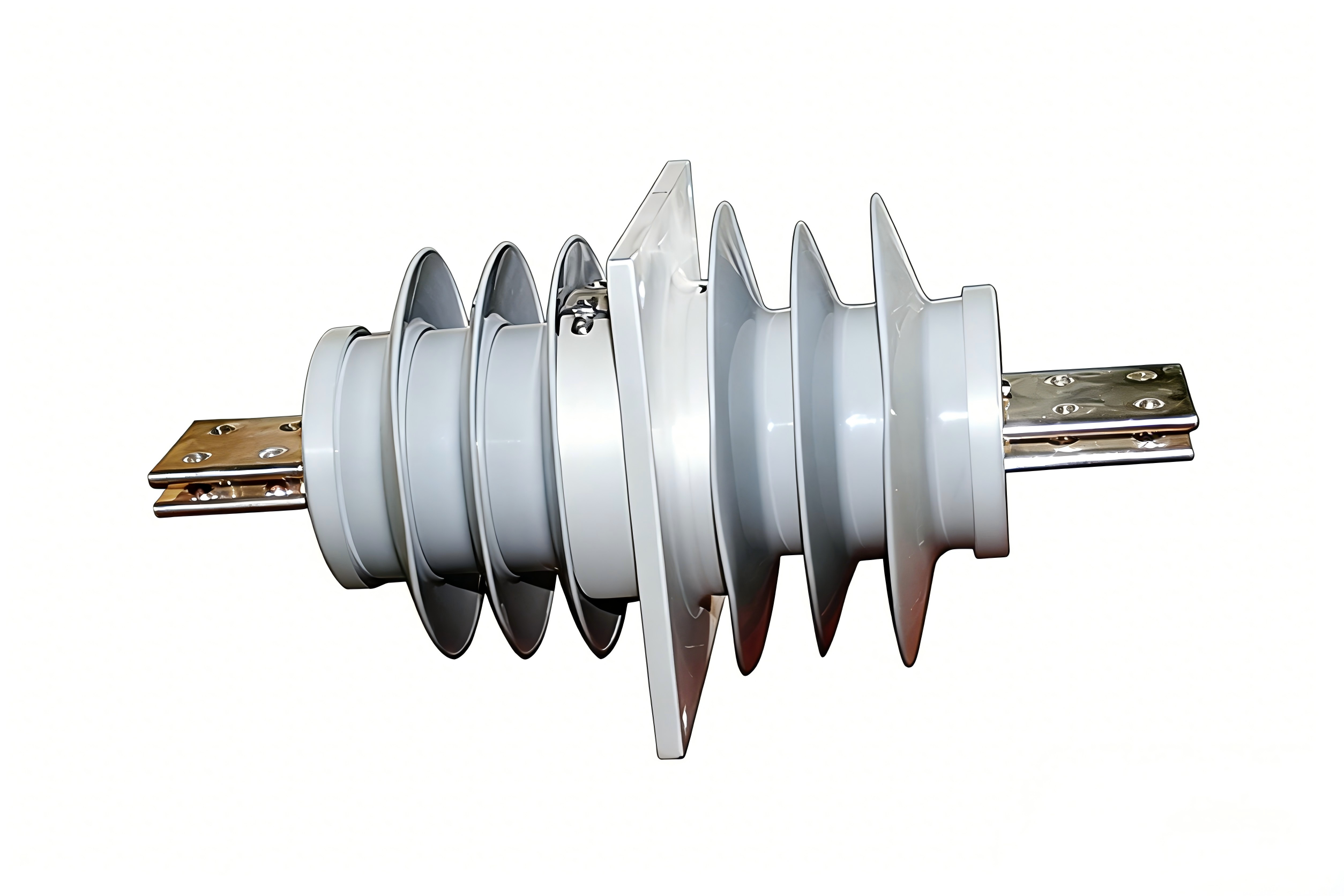

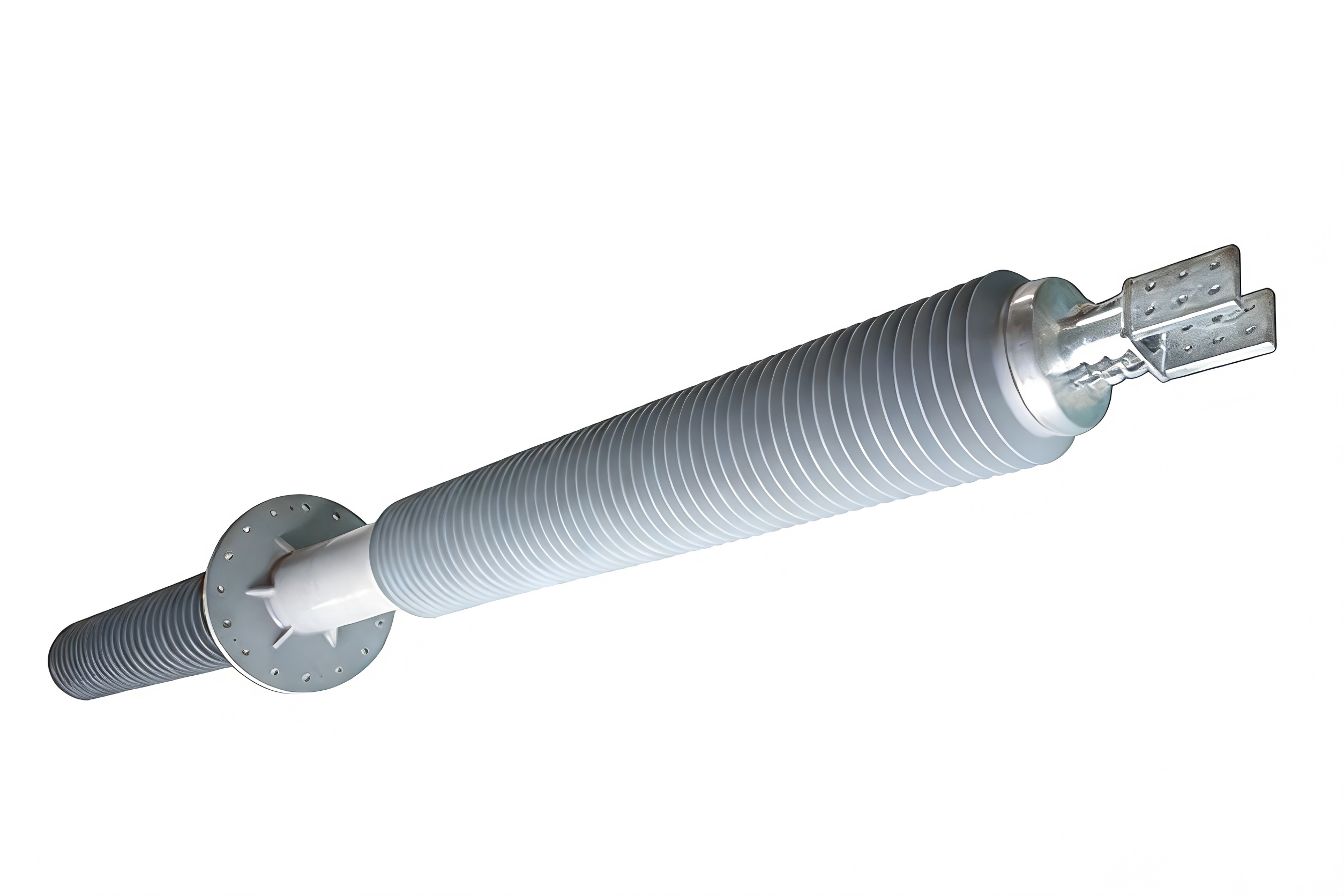

RIP/RIF Wall Bushing

Product Item: QXFCRG(P)W(L)

Rated Voltage: 24kV - 550kV

Rated Current: 630A - 8000A

Dry-type Condenser Wall Bushing

RIP Wall Bushing

RIF Wall Bushing

📞 +86 15253211901 ✉️ mark@qixinghv.com 💬 WhatsApp

WhatsApp Email Inquiry

Main Technical Index

Main Technical Index
System Nominal Voltage (kV)		10	20	35	66	110	220	330
Rated Voltage (Highest Voltage for Equipment) (kV)		12	24	40.5	72.5	126	252	363
Power Frequency Withstand Voltage (kV/min)	Dry	28	50	95	140	230	460	570
Power Frequency Withstand Voltage (kV/min)	Wet	28	50	80	140	230	460	535
Lightning Impulse Withstand Voltage	Full Wave	75	125	200	325	550	950	1175
Lightning Impulse Withstand Voltage	Chopped Wave	82.5	137.5	220	357.5	605	1045	1292.5
Switching Impulse Withstand Voltage (kV)		-	-	-	-	-	850	950
Dielectric Dissipation Factor	Maximum	The value at 1.05Um/√3 shall not exceed 0.4%.
Dielectric Dissipation Factor	Increment	The increment between 1.05Um/√3 and Um shall not exceed 0.1%.
Test Terminal Insulation Level (kV/min)		3
Partial Discharge Level (pC)	Um	≤10
Partial Discharge Level (pC)	1.05Um/√3	≤5
Pressure Tightness Test		0.6MPa/20min, no leakage.
Short-Time Withstand Current		Magnitude: 25 times rated current, max 100kA. Duration: 2s.
Rated Frequency (Hz)		50
Outdoor Shed		Outdoor sheds with alternating long and short profiles. Nominal creepage distance complies with GB/T 26218.

Cantilever Withstand Load (N)
Rated Voltage (kV)	Rated Current (A)
Rated Voltage (kV)	≤800	1000-1600	2000-2500	≥3150
≤52	1600N	1600N	2500N	3150N
72.5	2000N	2000N	3150N	4000N
123~145	3150N	3150N	4000N	4000N
170~363	4000N	4000N	5000N	5000N

Our Wall Bushings are engineered for safe and stable power passage through walls or floors in substations, featuring a revolutionary solid insulation design.

Product Advantages

End of Leakage Problems: Unlike traditional oil-impregnated paper bushings (prone to oil leakage, aging, poor seismic performance) or so-called "dry-type" bushings with silicone oil filler, our bushings have nothing to leak.

Monolithic Solid Structure: Whether RIF or RIP, the core is a single, void-free solid dielectric with no internal seals to fail and no fillers to degrade.

Ultimate Reliability: This seamless construction guarantees exceptional dielectric performance, mechanical strength, and seismic resistance over the entire service life.

Custom Design: Available for a wide range of wall thicknesses and mounting configurations.

Suitable Service Conditions for Bushings

Altitude: Applicable for installations at or below 2000m above sea level.

Ambient Temperature: Suitable for -50 °C to +50 °C.

Installation Angle: Can be installed at any angle.

Pollution Class: Suitable for heavily polluted areas, Class III or higher.

Ordering Information

When placing an order, please specify:

1. Electrical Parameters: Rated voltage, rated current, rated frequency, external insulation creepage distance, internal insulation clearance, oil-end length, draw-lead length, CT mounting position length.

2. Environmental Parameters: Ambient temperature, altitude, pollution class.

3. Installation Details: If a through-type CT is to be fitted, specify whether split-type or integrated-type CT is required, with relevant CT parameters.

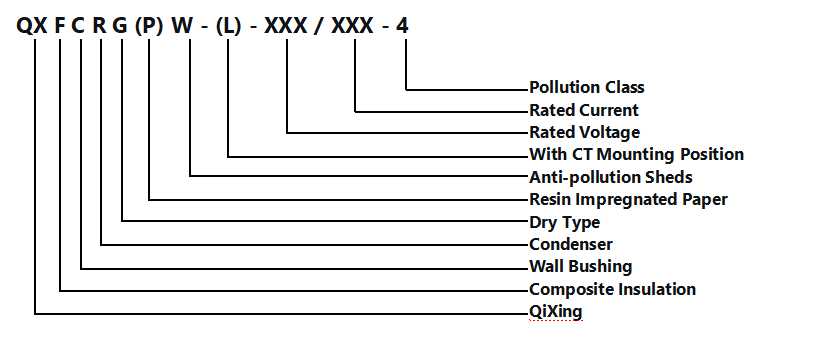

4. Model Designation: The letter "F" indicates silicone rubber composite sheds. Absence of "F" indicates porcelain sheds.

Note: Custom flange and terminal dimensions available. Direct replacement bushings also supplied.
